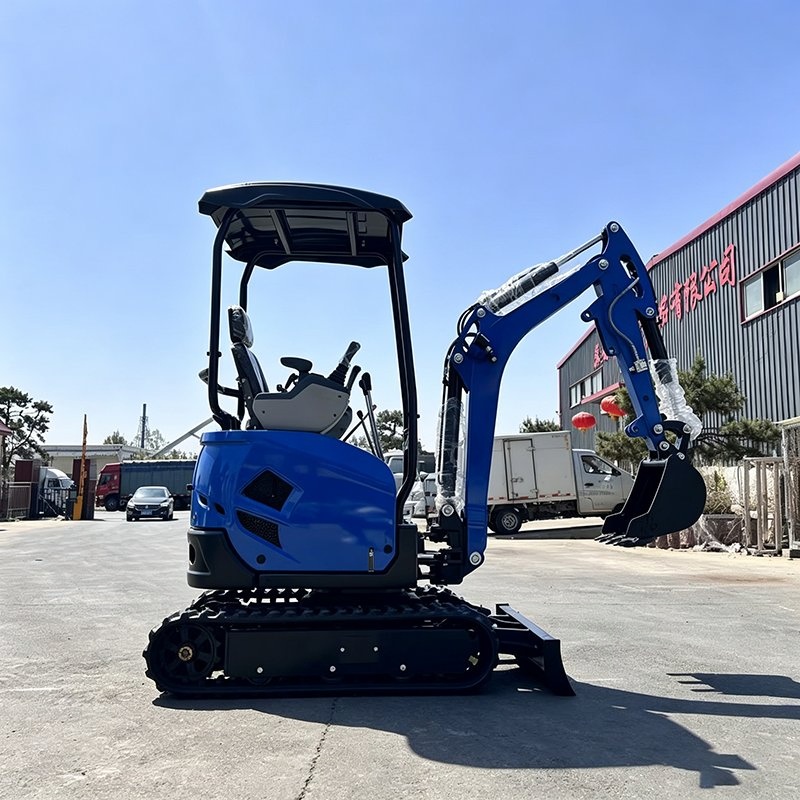

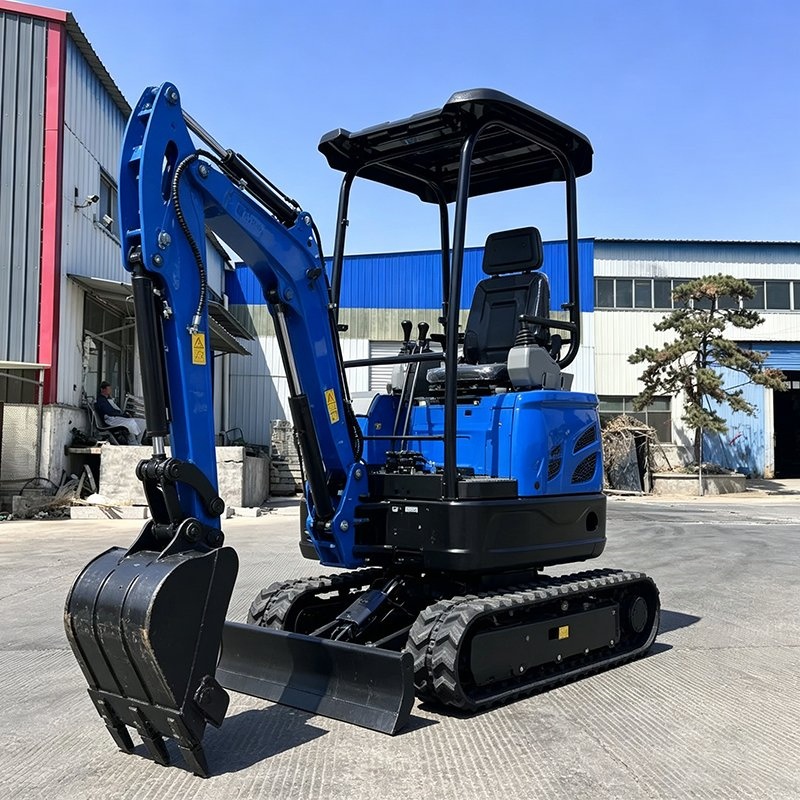

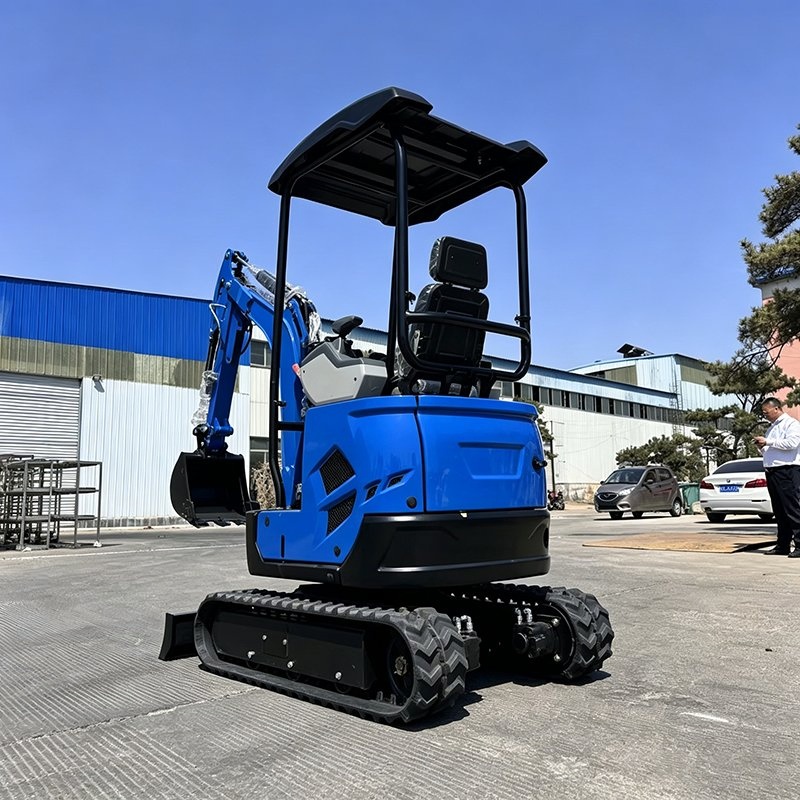

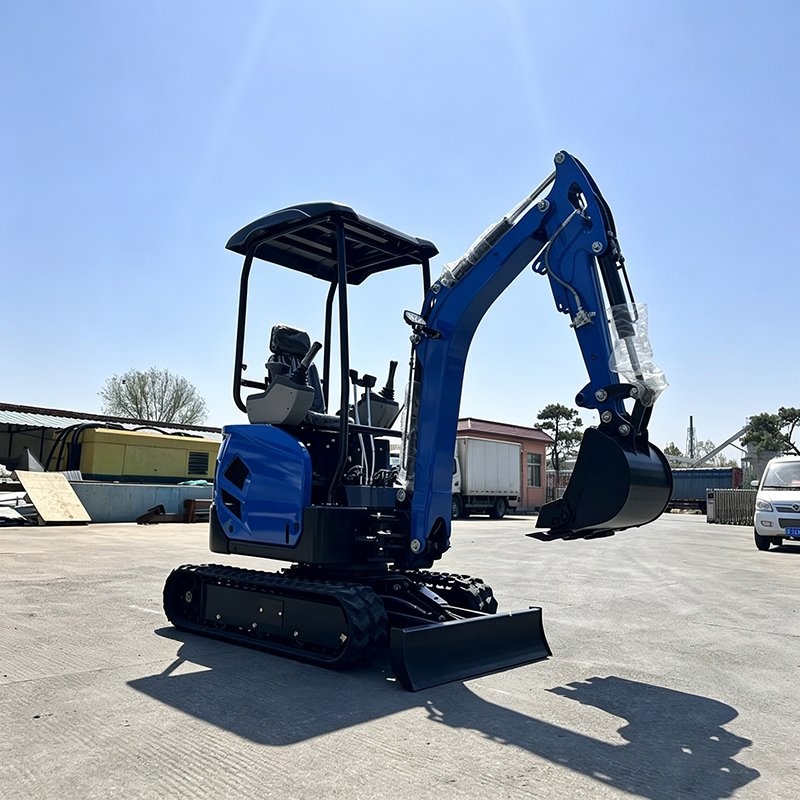

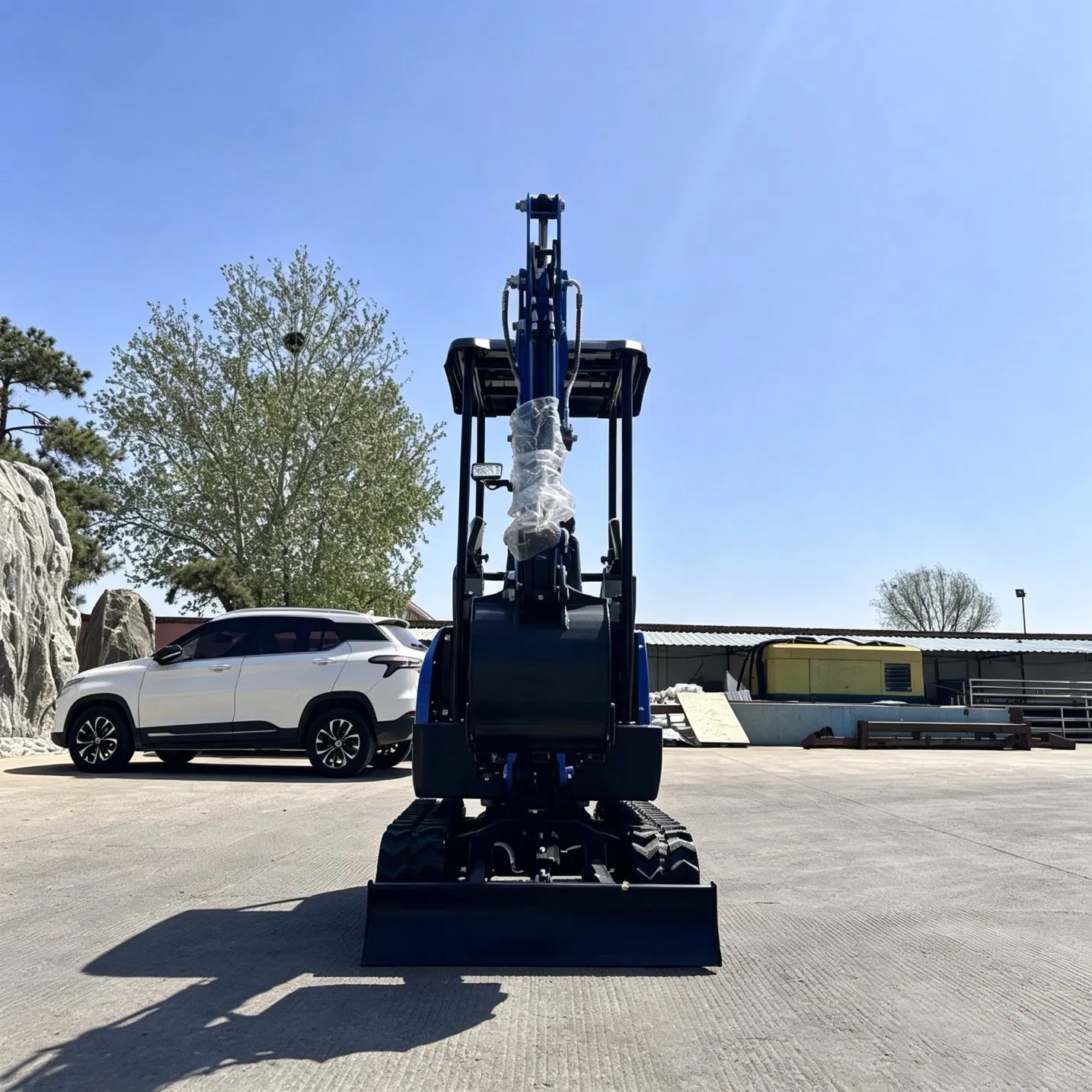

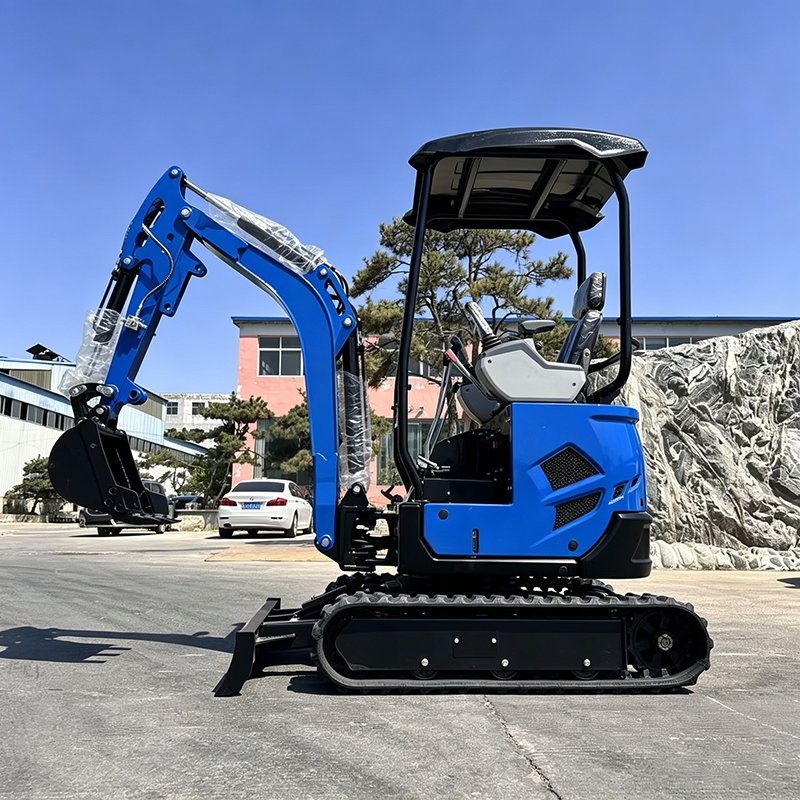

MINI EXCAVATOR NT-25 | |
Model | NT-25 |
Engine Brand & Model | LAIDONG 385 |
Rated Power | 18.1KW |
Operating Weight | 2200kgs |
Overall Dimension (LWH) | 396610602280mm |
Bucket Capacity | 0.07m³ |
Travel Speed | 3.4Km/h |
Platform Ground Clearance | 390mm |
Swing Angle | 360° full rotation |
Max Digging Height | 3427mm |
Max Dumping Height | 2600mm |
Max Digging Depth | 2752mm |
Max Digging Radius | 4519mm |
Max Bulldozer Digging Depth | 297mm |
Max Bulldozer Lifting Height | 230mm |
Standard Attachment | Standard digging bucket, hydraulic thumb claw, front dozer blade, rubber crawler tracks, enclosed full-view cab |
Equipped with reliable LAIDONG 385 diesel engine of 18.1KW, this compact digger features 360° full rotation, narrow body design and complete standard attachments including dozer blade and hydraulic thumb claw.
It is widely applicable to farmland renovation, garden landscaping, house reconstruction, municipal pipeline engineering and small earthmoving projects. With rubber tracks and full-view sealed cabin, it adapts to all working conditions and protects pavement/lawn effectively.
Rubber Track Chassis
Soft rubber crawler avoids scratching lawn, asphalt road, cement floor and tile ground, perfect for landscaping, villa renovation and indoor projects. Stable walking at 3.4km/h with strong grip on soft soil.
We support OEM customization, CE certification and factory direct supply for global distributors and end users.
Original LAIDONG 385 diesel engine with 18.1KW stable output, low fuel consumption, strong torque and long service life. Less breakdown, lower daily maintenance cost for long-hour continuous operation.
360° Unlimited Rotation Platform
Full 360-degree swing without dead working area. Operate flexibly in narrow spaces like backyard, greenhouse, indoor construction, small foundation sites, greatly improve work efficiency compared with limited-swing mini excavators.
Ultra Compact Narrow Body
Total width only 1060mm, easily pass through common gates, narrow alleys and indoor passages. 390mm high ground clearance ensures smooth driving on muddy, bumpy farmland without jamming. 2200kg lightweight body convenient for trailer transportation.
